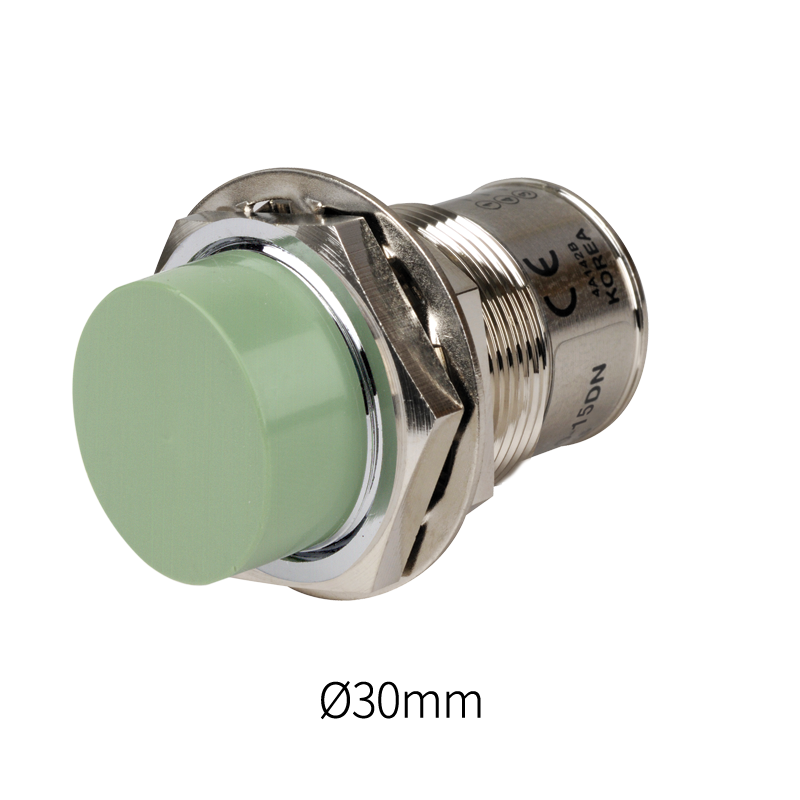

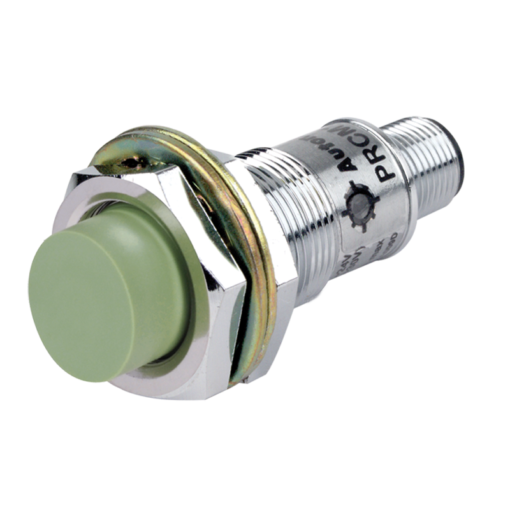

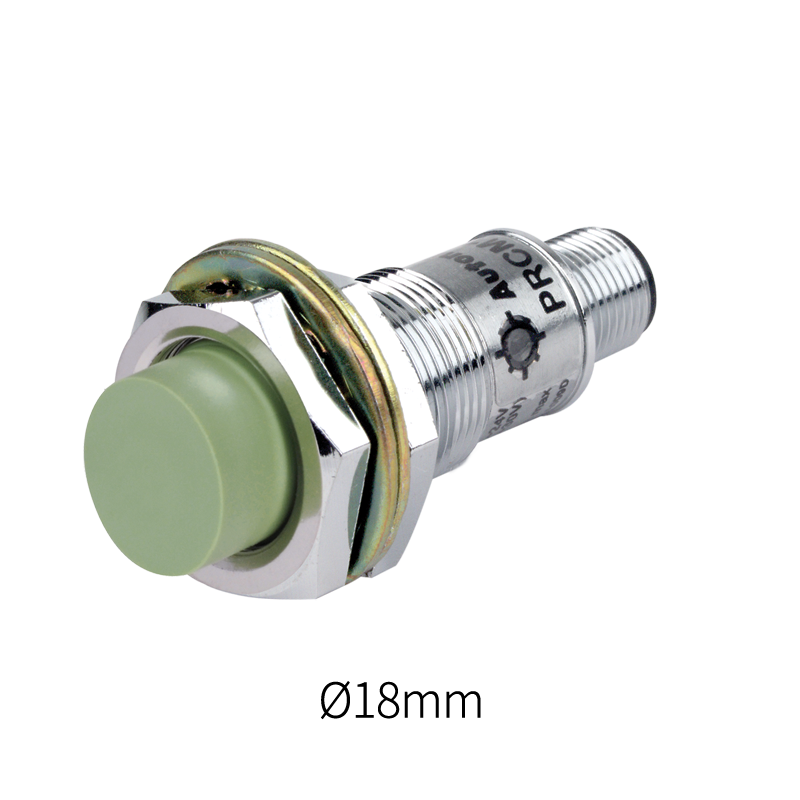

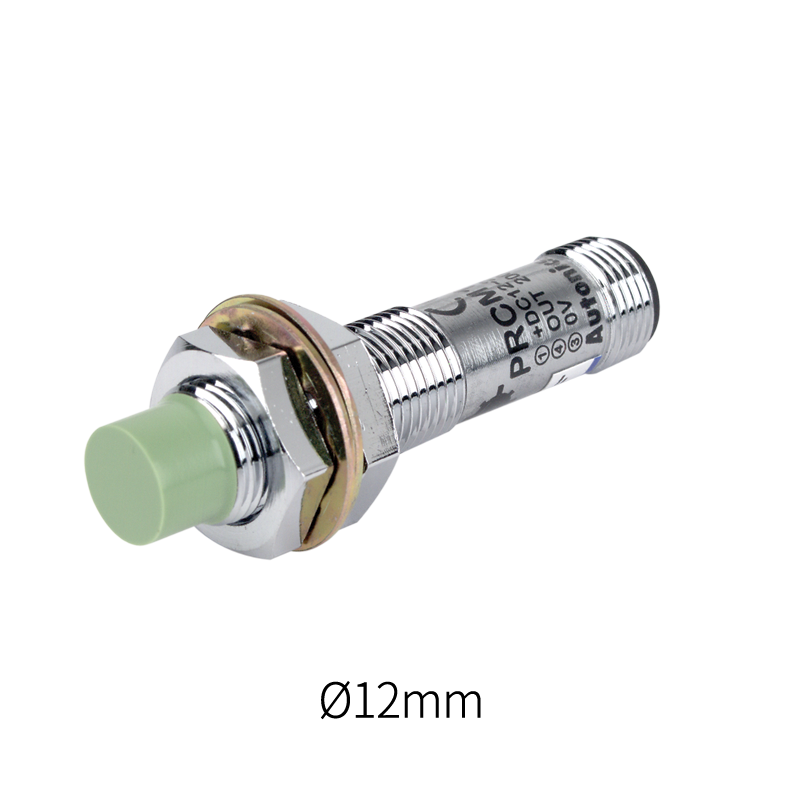

PRCM Series

Connector proximity sensor PRCM Series makes maintenance and wiring works easier than ever. Also, it realizes world-best class superior noise resistance characteristics with dedicated IC.

Categories: ,

Description

Features
* Improved the noise resistance with dedicated IC
* Built-in reverse polarity protection circuit(DC 3-wire type)
* Built-in surge protection circuit
* Built-in overcurrent protection circuit (DC type)
* IP67 protection structure (IEC standard) for connector part
* Replaceable for micro switches and limit switches

Title Type Size
PR Series (CE Mark) application/pdf 330 KB
PRCM Series (CE Mark) application/pdf 434 KB
Proximity Sensors Selection Guide application/pdf 2 MB
PR/PRW/PRCM/PSN Series (DC 2Wire) application/pdf 537 KB
PRCM Series (DC 3Wire) application/pdf 473 KB
PRCM Series (AC 2Wire) application/pdf 415 KB
Proximity Sensors (Proper Usage) application/pdf 666 KB
Proximity Sensors (Applications) application/pdf 641 KB
Proximity Sensors (Technical Description) application/pdf 744 KB
Proximity Sensors (Product Overview) application/pdf 5 MB
Proximity Sensors (Ordering Information) application/pdf 268 KB
PRCM Series application/pdf 591 KB
