BRQ Series

The BRQ series Ø18 mm cylindrical photoelectric sensors are available in various sensing sides (front, side), housing material (SUS316L stainless steel, nickel-plated brass metal, plastic), and body sizes (standard, short-body) for flexible application in diverse environments. The sensors feature long detection distance up to 30 m and accurate sensing performance with excellent noise immunity and minimal influence from ambient light. Mutual interference prevention function also allows the sensors to be installed close together. With IP67 protection rating, the sensors offer stable and error-free operation even in wet or dusty environments. The IP67K models are also available for application in high pressure and high temperature water and dust environments.

Description

[Common Features]

  • Excellent noise immunity and minimal influence from ambient light
  • Power/output reverse polarity protection circuits and output overcurrent (short-circuit) protection circuits
  • Mutual interference prevention function (except through-beam type)
  • Sensitivity adjuster
  • Switch between Light ON and Dark ON modes using control wire

[Front Sensing Type: BRQT, BRQM, BRQP Series]

  • Various housing material: stainless steel (SUS316L), metal (nickel-plated brass), plastic
  • Long sensing distance: 30 m (through-beam type)
  • Various body sizes:
    – BRQT, BRQM : Standard
    – BRQP : Standard, Short body
  • Protection structure:
    – BRQT : IP67 (IEC standard), IP69K (DIN standard)
    – BRQM, BRQP: IP67 (IEC standard)

[Side Sensing Type: BRQPS]
Protection structure: IP67 (IEC standard)

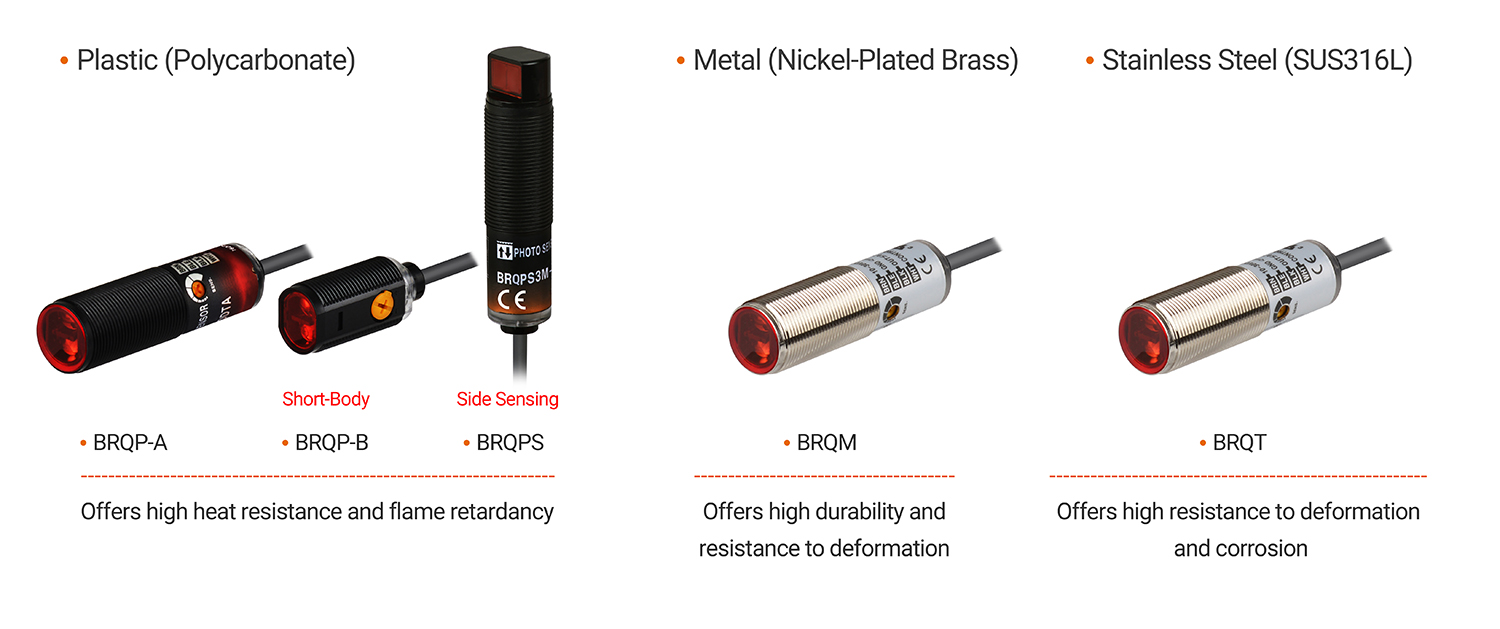

Various Models Available for Application in Diverse Environments

The BRQ series Ø18 mm cylindrical photoelectric sensors are available in various sensing sides (front, side), housing material (SUS316L stainless steel, nickel-plated brass metal, plastic), and body sizes (standard, short-body) for flexible application in diverse environments.

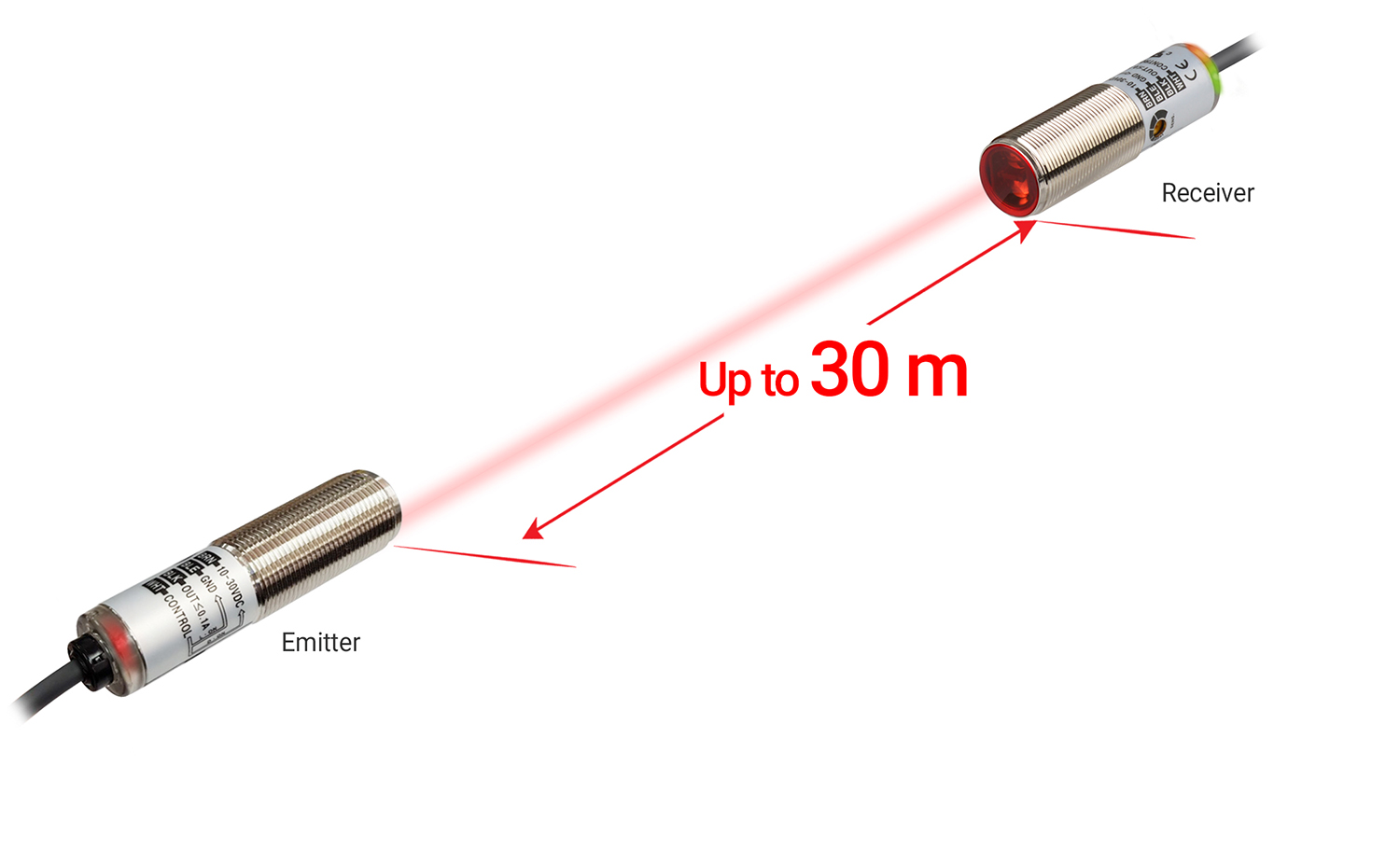

Long Sensing Distance Up to 30 m

The through-beam type models feature long sensing distances up to 30 m.

*Sensing distance: through-beam type 5 m, 20 m, 30 m / Retroreflective type 3 m / Diffuse reflective type 100 m, 400 m, 1 m

Mutual Interference Prevention Function

Mutual interference prevention function changes the emitting cycle of the sensors, which allows multiple sensors to be installed close to each other. (Except through-beam type)

Sensitivity Adjuster

The built-in sensitivity adjuster allows users to easily adjust the sensitivity without repositioning the sensors.

Check Operation Status

Users can easily check operation status with stability indicators (green LED) and operation indicators (red LED)

IP67 (IEC Standard), IP69K (DIN Standard) Protection Structure

IP67 protection structure allows stable and error-free operation even in wet or dusty environments.

The IP67K models are also available for application in high pressure and high temperature water and dust environments.

Title Type Size
Instruction Manual

BRQ (front sensing type) Series

application/pdf 2 MB
Instruction Manual

BRQ (side sensing type) Series

application/pdf 2 MB
Catalog

BRQ Series

application/pdf 5 MB
Technical Description

Photoelectric Sensors

application/pdf 631 KB
Certification

BRQ Series (CE Mark)

application/pdf 2 MB
Software

AUTONICS_E-Plan PART_DB(Photoelectric Sensors, Proximity Sensors, FiberOptic Sensors)

application/zip 246 KB
